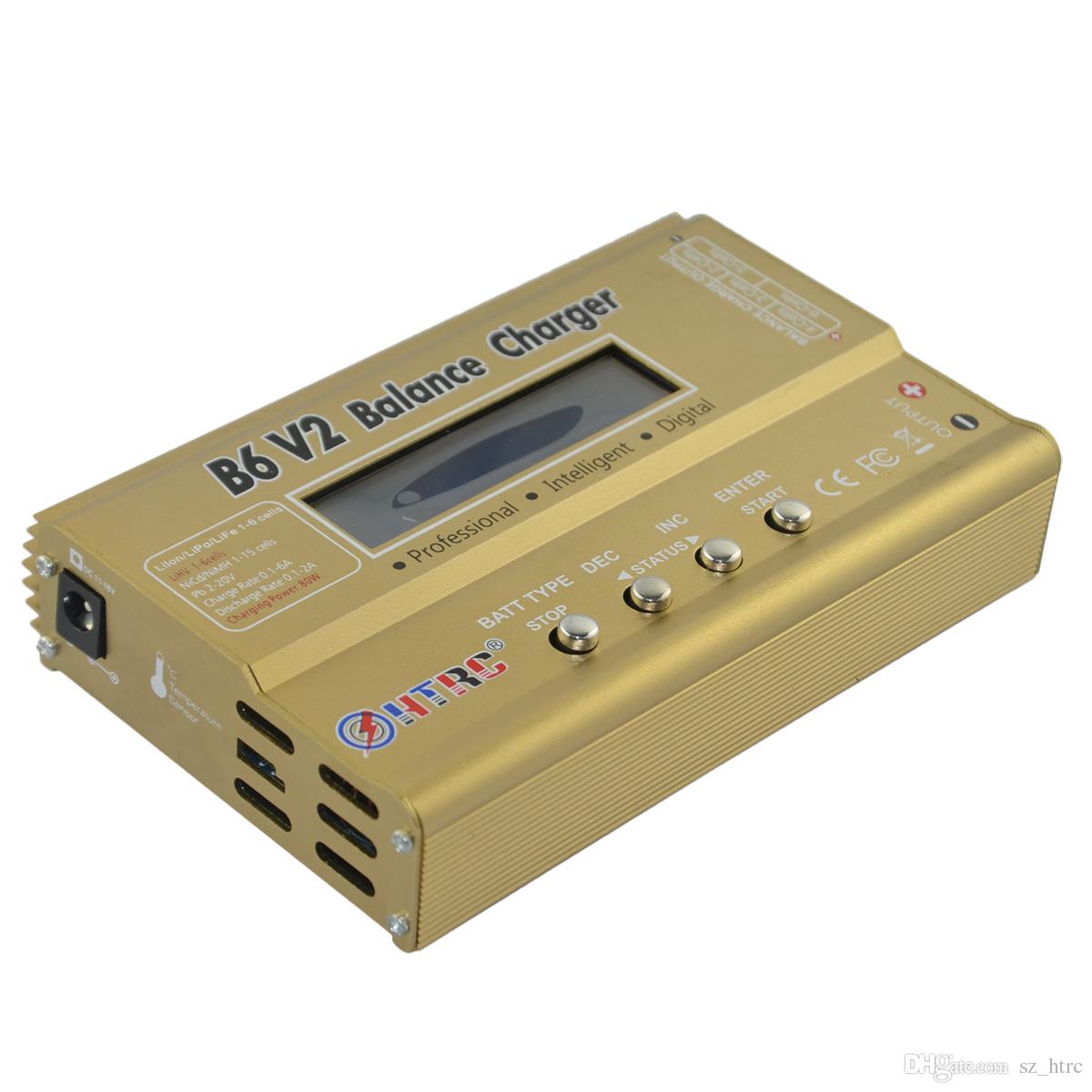

HTRC Imax B6 V2 Balance Charger/Discharger 80W
HTRC B6 V2 80W LiPo Battery Charger LED Balance Discharger 6A DC11-18V for Lipo Li-ion LiFe NiCd NiMH LiHV PB Smart Battery
-Microprocessor controlled Delta-peak sensitivity.
-High-Power and high-performance circuit.
-Automatically identify the cells counts of lithium battery section.
-Check lithium battery internal resistance.Let you know when a cell is going bad.
-Support LiHV battery
-Support smart battery I,II,III.(need optional smart battery charging cable)
-Maximum Safety: Low Input Voltage setting,Delta-peak sensitivity. Capacity limit, processing time limit, Temperature Threshold.
-Terminal Voltage Control.User is able to adjust the end charge voltage per cell, and set a voltage which is kinder to the batteries as his will.
-Individual cell balancing, cell voltage Monitoring
-Data storage and loading (Store up to 20 packs in memory)
-Battery break in and cycling.
-Lipo/Lilo/LiFe/LiHv: balance charge, charge,fast charger, storage, discharge.
-NiMH/NiCd: Charge, Discharge, Cycle.
-PB: Charge, Discharge
* Operating voltage range: DC11.0-18.0 Volt/ AC to DC adapter (DC11.0-18.0V/ 6A)
* Max.charge power 80W
* Max.discharge power 10W
* Charge Current Range: 0.1-6.0A
* Discharge current range:0.1-2.0A
* Current drain for balancing: 400mAH/cell
* LiIon/LiPo/LiFe/ LiHV cells:1-6 cells
* NiCd/NiMH cells: 1-15cells
* Pb battery voltage: 2~20v
* Smart Battery: I II III.
* Net Weight: 220g
* Dimensions: 135x86x27mm

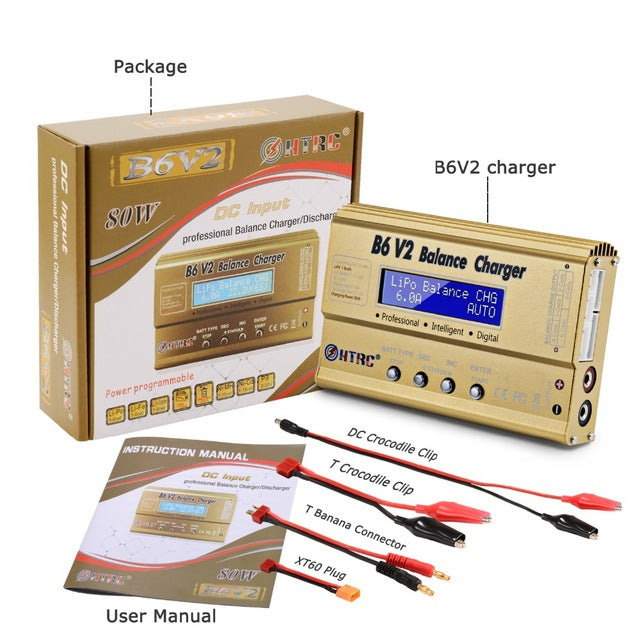

1 x HTRC B6 V2 charger
1 x Charge cable with T-plug
1x Cable T-plug to XT60
1 x Universal crocodile clip
1 x cable T-plug to crocodile clip
1 x Manual
1 x 15V 6A AC power adapter
