Phoenix Model Waco 50-61cc Gas/EP ARF 90.5" - 1:4
Phoenix Model Waco 50-61cc Gas/EP ARF 90.5" - 1:4
Phoenix Model Waco 50-61cc Gas/EP ARF 90.5" - 1:4
Phoenix Model Waco 50-61cc Gas/EP ARF 90.5" - 1:4
Phoenix Model Waco 50-61cc Gas/EP ARF 90.5" - 1:4

Phoenix Model Waco 50-61cc Gas/EP ARF 90.5" - 1:4

HHCD0700

Regular priceRs. 80,401.00
/
Tax included. Shipping calculated at checkout.

  • Worldwide Shipping Available
  • Express Delivery Available
  • In stock, ready to ship
  • Inventory on the way

Use collapsible tabs for more detailed information that will help customers make a purchasing decision.

Ex: Shipping and return policies, size guides, and other common questions.

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Description

Stable for sport

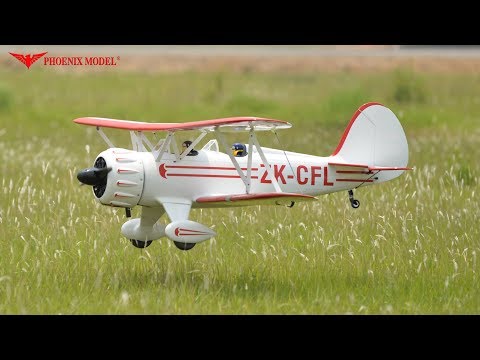

When you put a WACO in the air, you launch a piece of aviation history. These biplanes have taken aviators into the skies since the thirties and their as stable, as reliable, and as attractive today as they were in the golden age of aviation. This Phoenix Model version is every bit as fun to fly as the original and it’s available as an easy-to build ARF as well.
This is the Radio Controlled, Gasoline or Electric Powered Almost Ready to Fly
Waco 50-61cc 1/4 scale Biplane from Phoenix Model.
For Intermediate Flyers.

FEATURES
Construction: Balsa and plywood
Wing: Two-piece removable, with aluminum joiner tubes, dual servo
aileron control
Hatch: Removable for access to radio equipment, two painted pilot
figures and cockpit detail
Covering: Covered in high-quality heat shrink film
Cowl: 11.5" (292mm) inside diameter with a slight taper
Landing Gear: Two-piece prebent aluminum with 5.25" (135mm) diameter
main wheels, 1.8" (47mm) tailwheel
Wheel Pants: Fiberglass, painted white and red to match covering
scheme
Spinner: Black plastic scale type, 3.7" (95mm) diameter
Fuel Tank: Approximately 12oz (360cc)

INCLUDES
Prebuilt Wing, Tail and Fuselage sections, Landing Gear, Wheels,
Spinner, Decals, Hardware and Instruction Manual

REQUIREMENTS
Radio: At least 8-channel
Servos: Five high torque (2-aileron, 2-elevator, 1-rudder)
One standard servo for throttle if using gasoline engine
Building and field equipment
Electric Power;
Brushless Motor: 65cc ElectriFly Rimfire recommended
Electronic Speed Control: If using motor listed above
LiPo Battery: Two 6S
Battery Charger: Compatible with selected battery
Propeller: To match selected motor
Gasoline Power;
Engine: 50-61cc two stroke
Receiver Battery: Two 6.0V, at least 2400mAh
Building and field equipment
Propeller: To match selected engine

SPECIFICATIONS

  • Wingspan: 90.5" (2300mm)
  • Length: 73.7" (1873mm)
  • Wing Area: 2519 sq in (162.5 sq dm)
  • Wing Loading: 25.20oz/sq in (76.9g/sq dm)
  • Wing Type: NACA airfoils
  • Weight: 27.5 - 30lbs (12.5 - 13.5kg)
  • Wing Tubes;
  • One each;
  • 0.75 x 38" (19 x 965mm) Wing Tube
  • 0.75 x 35" (19 x 889mm) Wing Tube
  • Two each;
  • 0.75 x 16.5" (19 x 419mm) Wing Tubes
  • 0.75 x 23" (19 x 584mm) Wing Tubes
  • Servo Mount: 0.83 x 1.6" (21 x 42mm)
  • Center of Gravity (CG): 6.7" (172mm) back from leading edge of upper wing
  • Control Throws- Low High
  • Ailerons 0.71" (18mm) 10% expo 0.87" (22mm) 10% expo
  • Elevator 0.71" (18mm) 12% expo 0.87" (22mm) 12% expo
  • Rudder 1.2" (30mm) 15% expo 1.6" (40mm) 15% expo
