Futaba 16IZ 2.4GHz 16 Channel FASSTest Airplane Radio System with R7108SB Receiver

FUTABA RADIO T16IZ 16 CHANNEL

Futaba 16IZ with R7108SB Receiver & TX Li-Po CB16IZ

Futaba 16IZ with R7108SB Receiver & TX Li-Po

The 16IZ transmitter takes its styling cues from the top of the range 32MZ, with an attractive, comfortable and ergonomic design, whilst the large full colour touchscreen makes programming quick and intuitive. Incorporating Futaba’s S-FHSS, T-FHSS and FASSTest transmission protocols, the 16IZ offers advanced aircraft, helicopter and glider programming, and includes a maximum of 8 flight conditions as well as Futaba’s super precise telemetry system.

Supplied with 2 cell 2000mAh Li-Po Tx battery offering extended operating time, with integral USB charger, the feature packed 16IZ is perfect for both advanced and intermediate pilots, or even ambitious beginners!

 Features

• 16+2 Channels
• S-FHSS, T-FHSS and FASSTest Modulation
• 30 Model memories
• SD Card slot
• Full telemetry
• Full colour touchscreen
• High-capacity Li-Po Tx battery
• USB Port
• S-Bus connection w/power
• Maximum 8 flight conditions
• Aircraft, Helicopter and glider programs
• Voice
• Data logging

Features:

• FASSTEST SYSTEM: The 16IZ transmitter adopted the bidirectional communication system “FASSTest”. Data from the receiver can be checked in your transmitter. FASSTest is a maximum 18 channels (linear 16 channels + switch 2 channels) 2.4 GHz dedicated system.
• BUS2 SYSTEM: By using the S.Bus2 system multiple servos, gyros and telemetry sensors are easily installed with a minimum amount of cables.
• USB SIMULATOR CONTROL: The T16IZ offers USB C compatibility for simulator control when used with Windows OS Joystick function.
• COLOR TOUCH SCREEN LCD: T16IZ has an updated HVGA 4.3 inch, full-color backlit LCD touch screen. The screen is transflective which enables both indoor and outdoor visibility.
• MULTI HOLDER: T16IZ Offers Multi holder near the antenna/charging port. It allows for accessories to be mounted using an M3 style screw.
• Voice Telemetry: The T16IZ allows for audible telemetry data to be read aloud for easy understanding of crucial parameters while flying.
• SECURE DATA (SD CARD): Model data, music files, voice files, and picture files can be stored on optional microSD card. The microSD card is also used when updating the software/features of the T16IZ.
• HIGH CAPACITY LITHIUM POLYMER BATTERY (2000 MAH): The high capacity 2S Lithium Polymer battery gives you extended flight time.
• EDITING: The touch panel and two enter keys allows you to edit your model in the manner that is easiest for you.
• FUNCTIONS: The internal processor   the response time. Most of the mixing functions are operated by curves which give you very precise settings.
• STICK: Each stick offers our reliable single ball bearing for each axis. With our high cycle potentiometer this allows for finer and more precise operation.
• VIBRATION FUNCTION: Low voltage and other alarms are generated by a vibration motor. Alarms or vibrations to be used can be selected by the owner.
• R7108SB:The system comes with the R7108SB S.Bus2 Dual Antenna Diversity receiver featuring bi-directional communication.

Specifications:

• Transmitter:
  • Type: Airplane system w/ratcheting handle
  • Transmitter Frequency:4 GHz band
  • Operating System: FASSTest/FASST/T-FHSS/S-FHSS
  • Power Supply: 4 V LT2F2000B Lithium-polymer battery
  • RF Power Output: 100 mW EIRP
• Receiver:
  • Model: R7108SB
  • Size: 9x47.3x14.3mm
  • Weight:0 g
  • Power Requirements: 6 V LiFe Battery
  • Current Drain: 75 mA
  • RF Power Output: 25 mW EIRP

Includes:

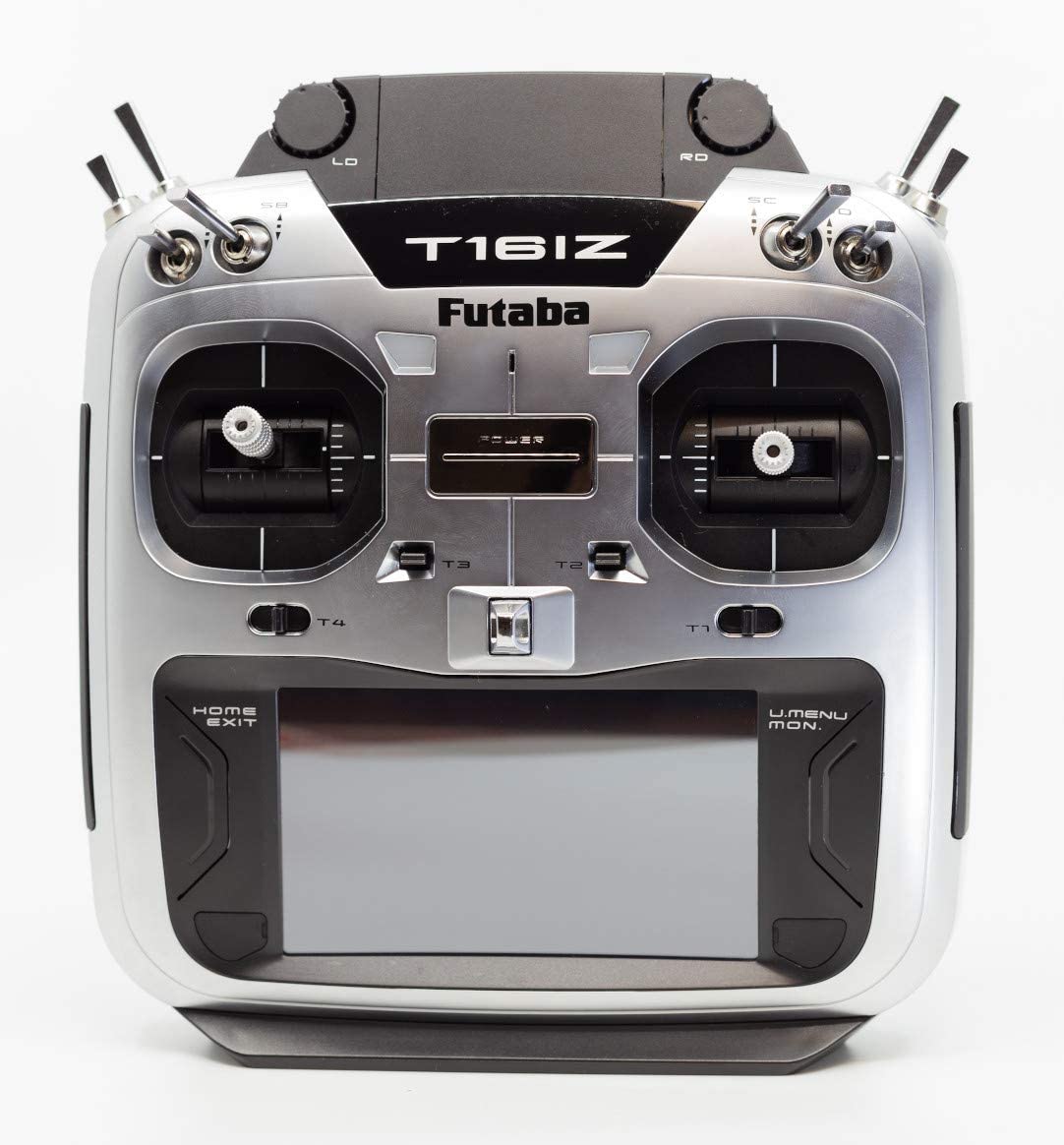

• T16IZ Transmitter (Airplane Version)
• R7108SB Receiver

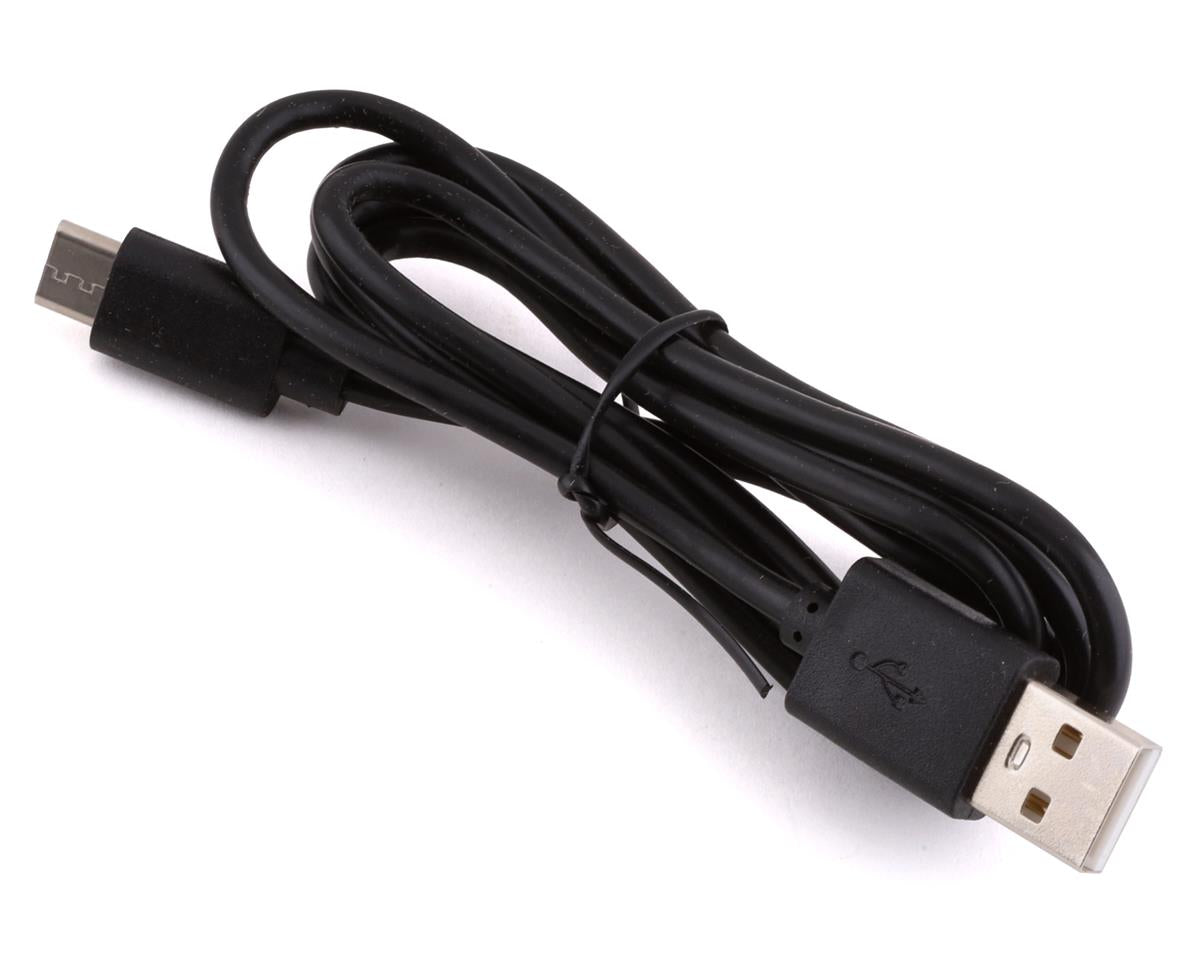

• LT2F2000B Lithium Polymer Battery and USB cable for charging
• Switch Harness

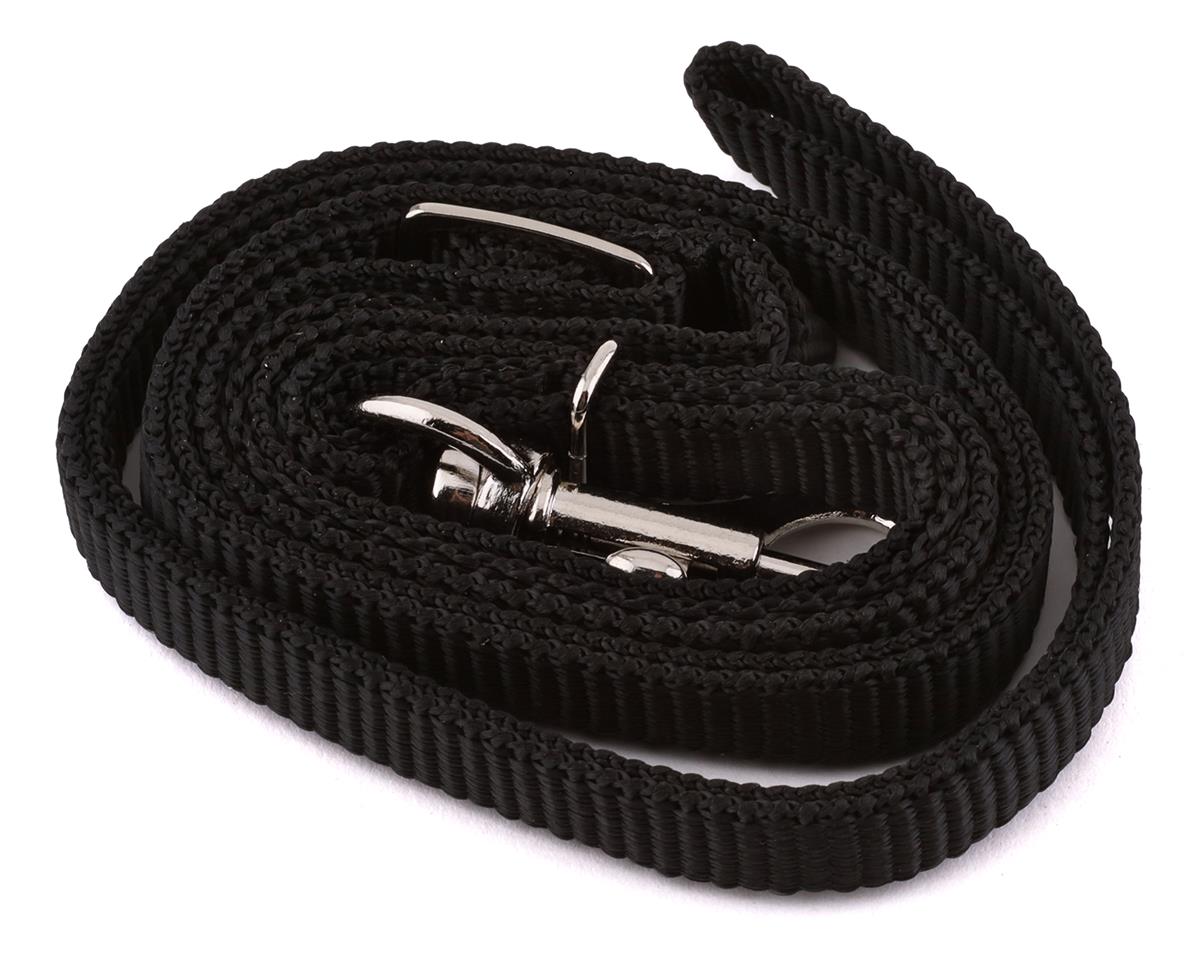

• Neck Strap
• Manual (Printed short version. Download full version in resources tab above)
