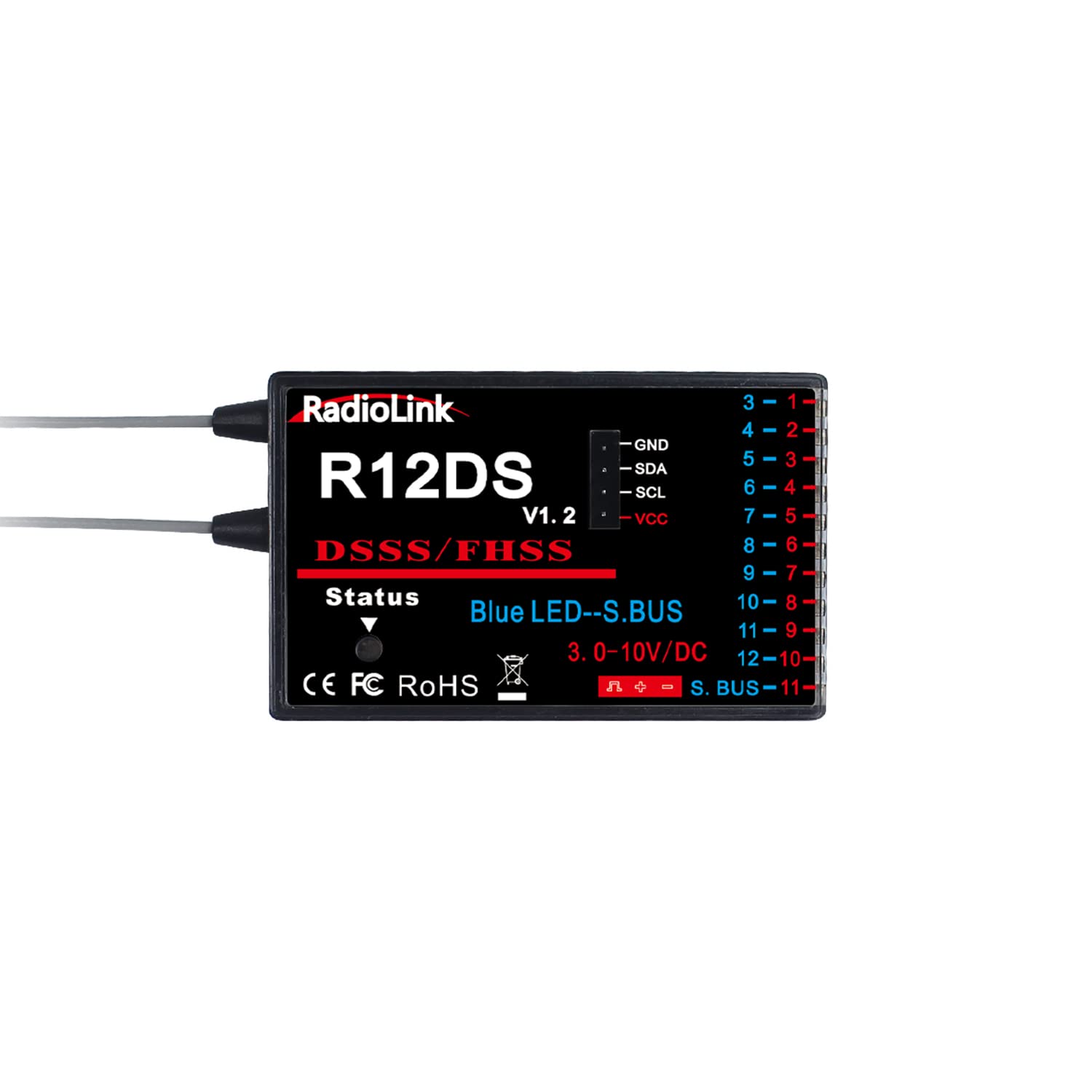

Radiolink R12DS 2.4GHz RC Receiver 12 Channels SBUS/PWM

Radiolink R12DS 2.4GHz RC Receiver 12 Channels SBUS/PWM

1. Operating Voltage: 3~10V
2. Operating Current: 38-45mA@5V
3. Section Precision: 4096, 0.25us per section

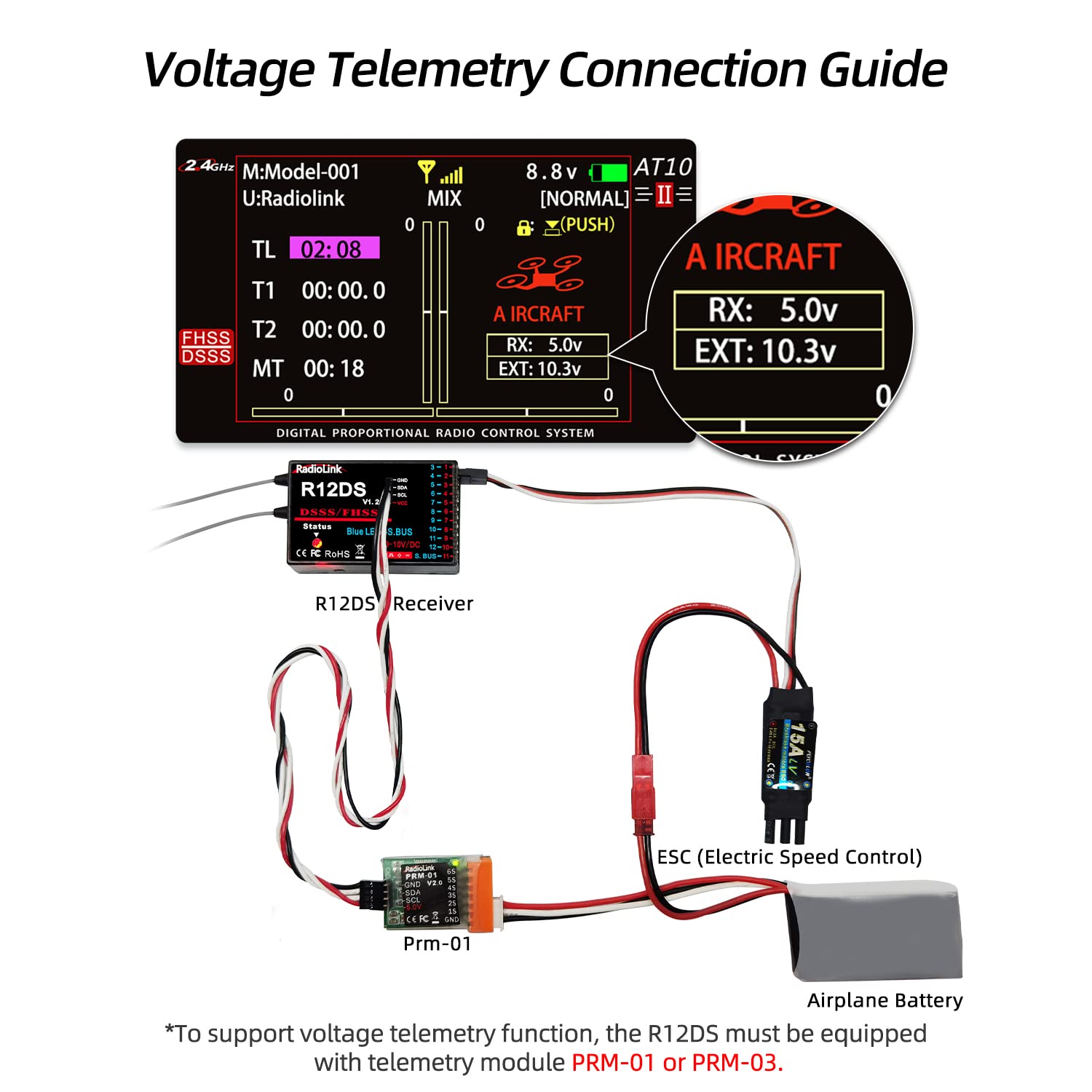

4. Compatible with extended telemetry module PRM-01
5. Compatible transmitter: AT10II/AT10/AT9S Pro/AT9S/AT9

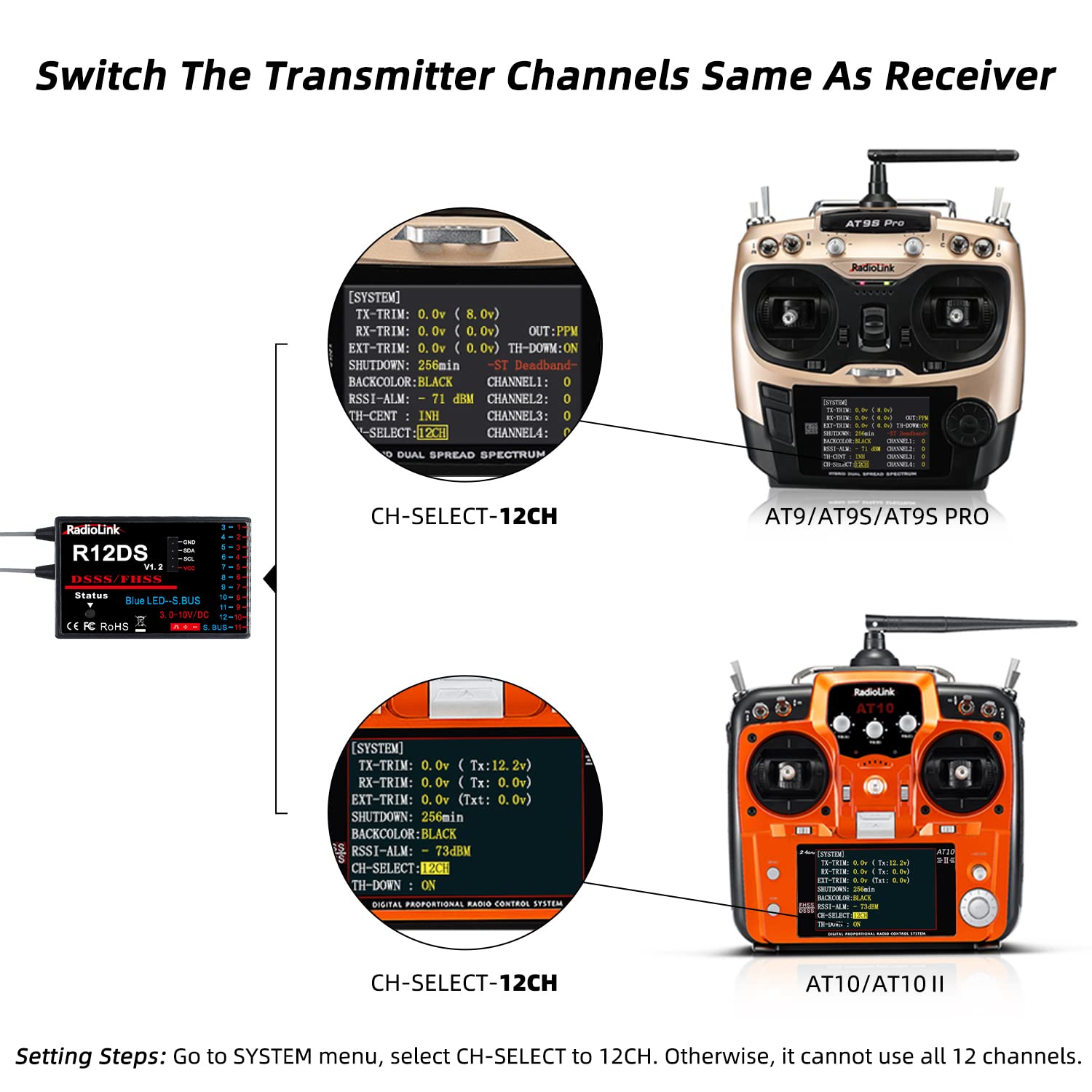

Stronger Anti-interference: DSSS&FHSS communication technology makes R12DS receiver with stable transmission signal, control distance up to 2.4 miles in the air. (Actually control range depends on the using environment) 12 Channels: with standard SBUS/PWM signal output, high resolution ratio of 4096, fast Respone for all channels. Make sure SYSTEM CH seletion is 12CH mode when it works with AT9S.

Features:

1. R12DS to produce a highly constant and stable transmission signal.
2. DSSS&FHSS reduce overall signal interference
3. Control distance up to 2.4 miles in the air
4. High resolution ratio of 4096
5. Fast Respone for all channels

Specifications:

1. Operating Voltage: 3~10V
2. Operating Current: 38-45mA@5V
3. Section Precision: 4096, 0.25us per section
4. Control distance: 4000 meters(2.49Miles) in the air, 2000 meters(1.24Miles) on the ground (Maximum range tested in unobstructed areas free of interference and may vary depending on local regulations).
5. Compatible with extended telemetry module PRM-01

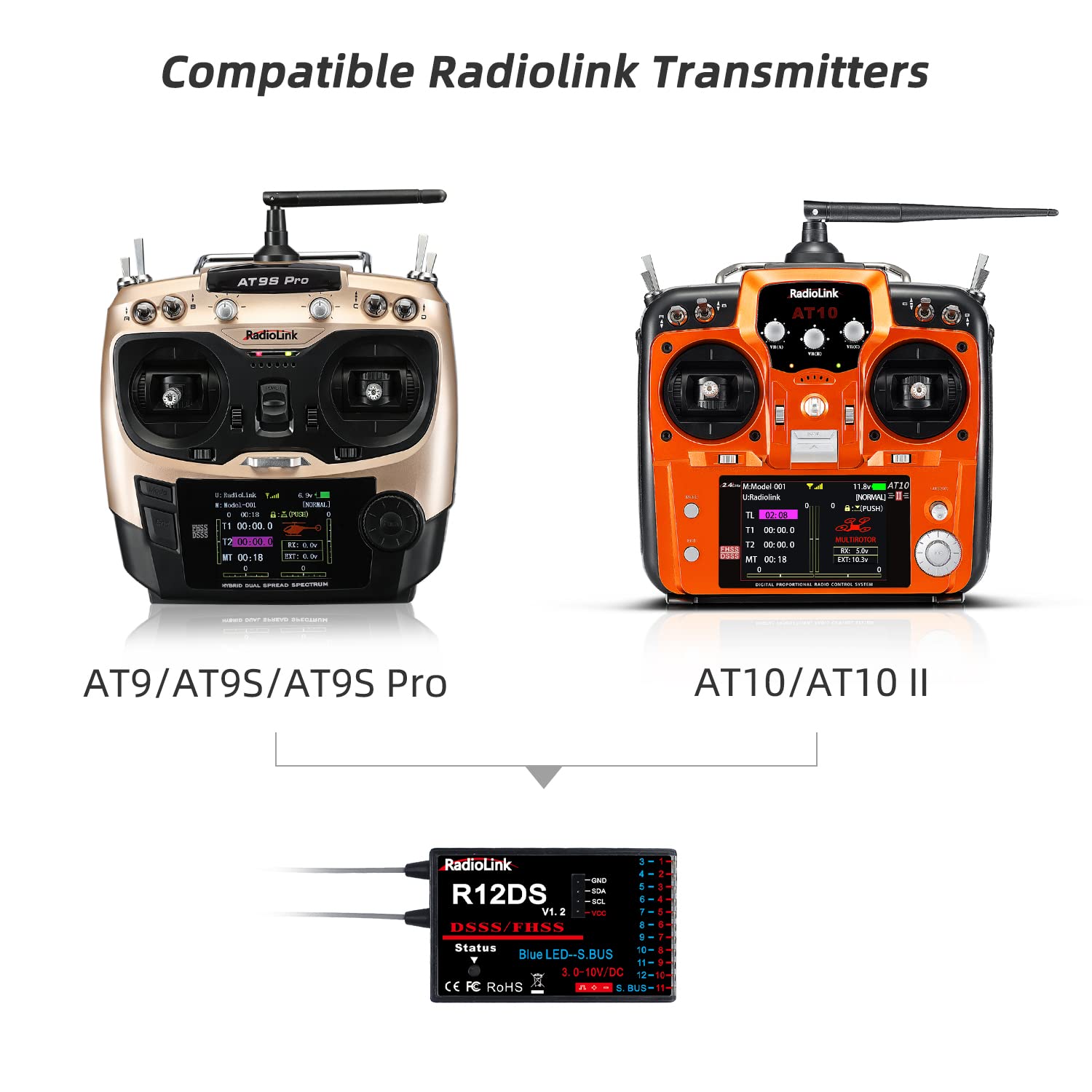

6. Compatible transmitter: AT10II/AT10/AT9S Pro/AT9S/AT9

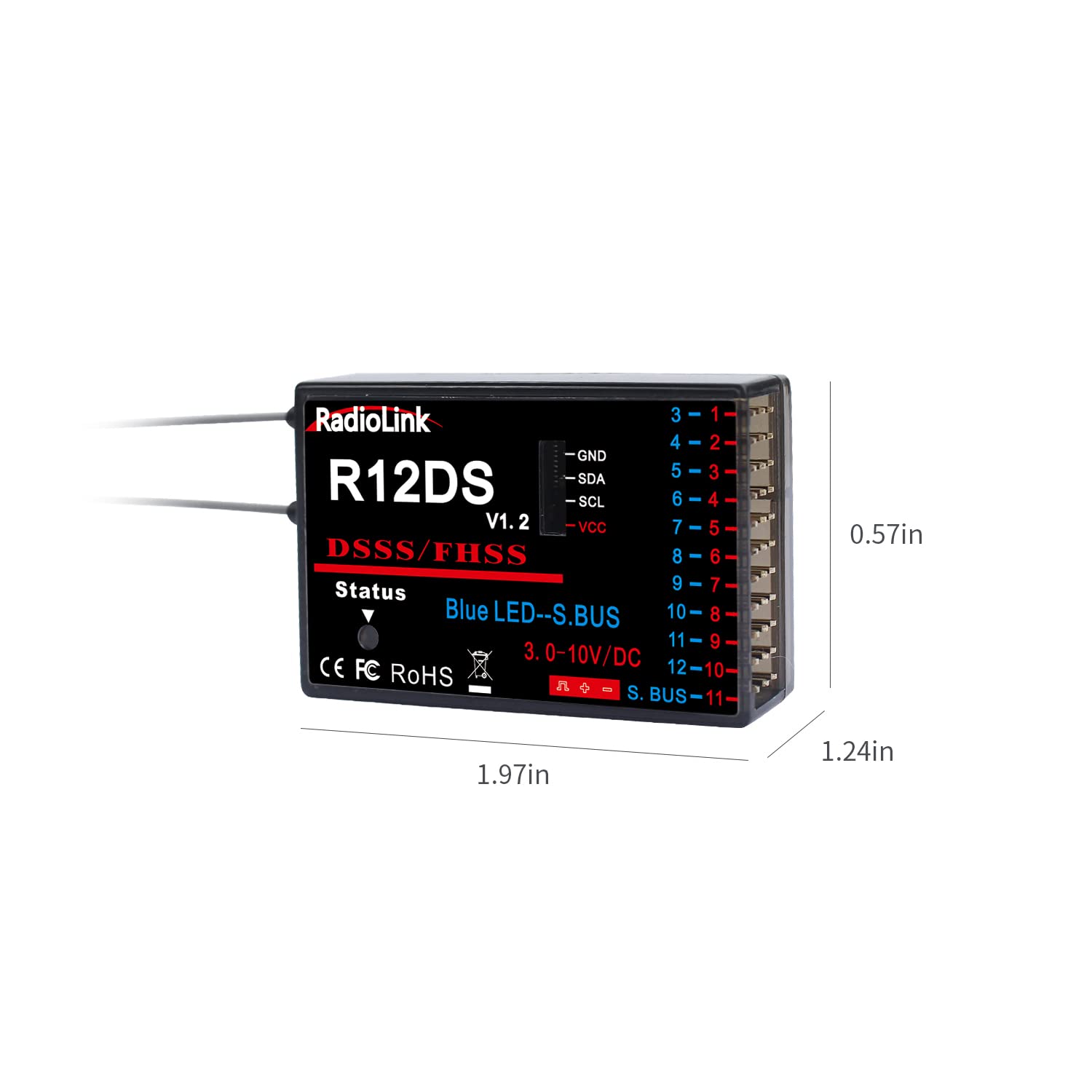

7. Size: 50 x 32 x 14.5MM (1.97″ x 1.26″ x 0.57″)
8. Weight: 15g (0.49oz)

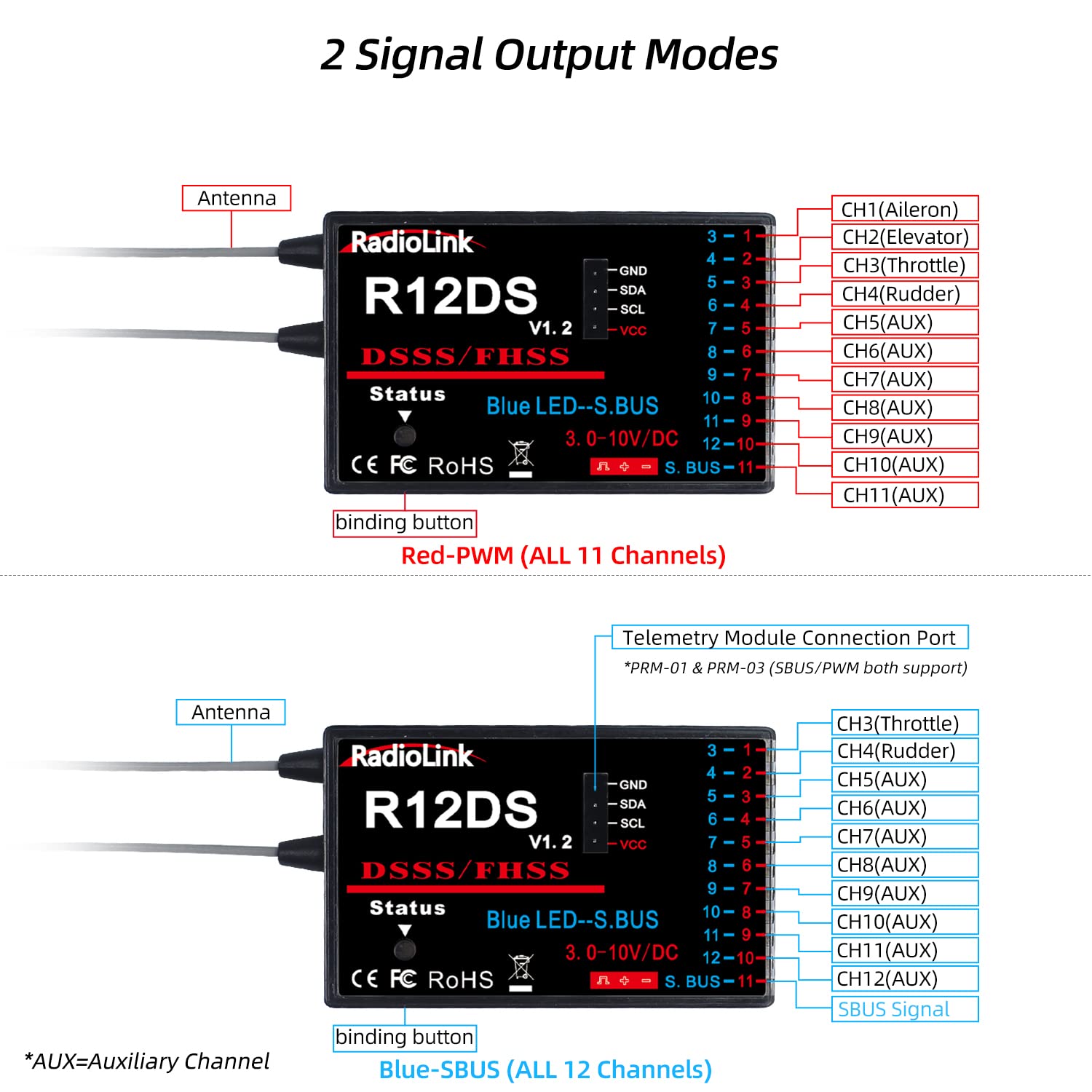

9. Channels Qty: 11 channels for PWM signal output; 12 channels for SBUS&PWM signal output.
10. Signals: PWM/SBUS&PWM

Packages Includes:

1 x Radiolink R12DS 2.4GHz RC Receiver 12 Channels SBUS/PWM
