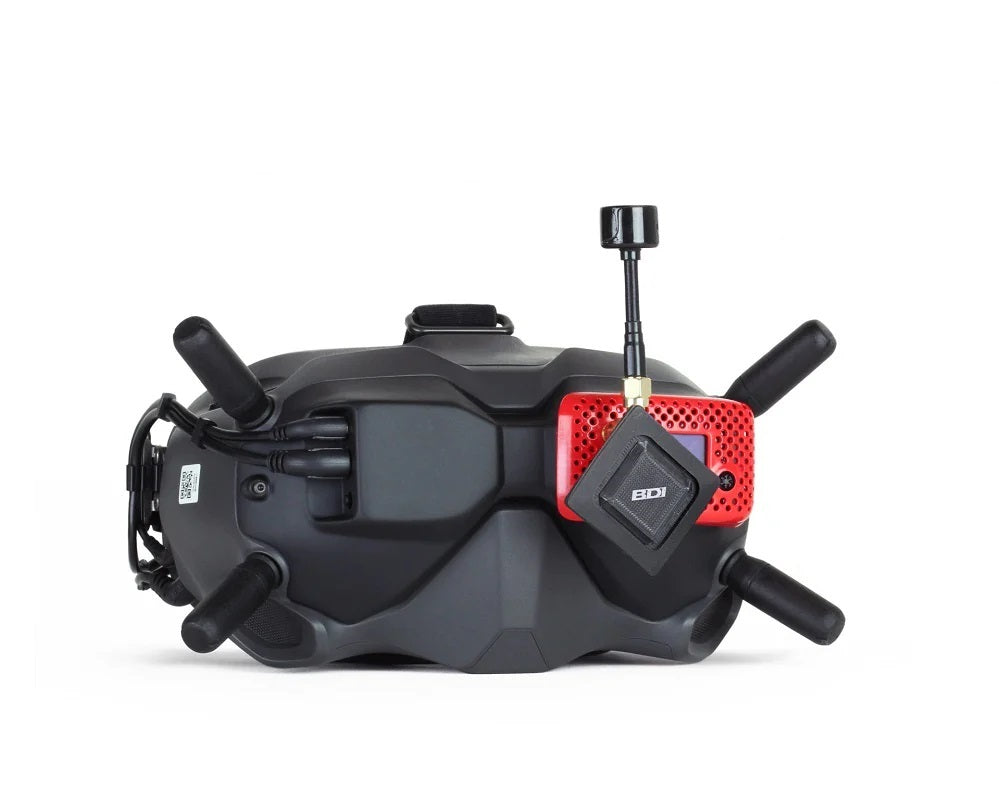

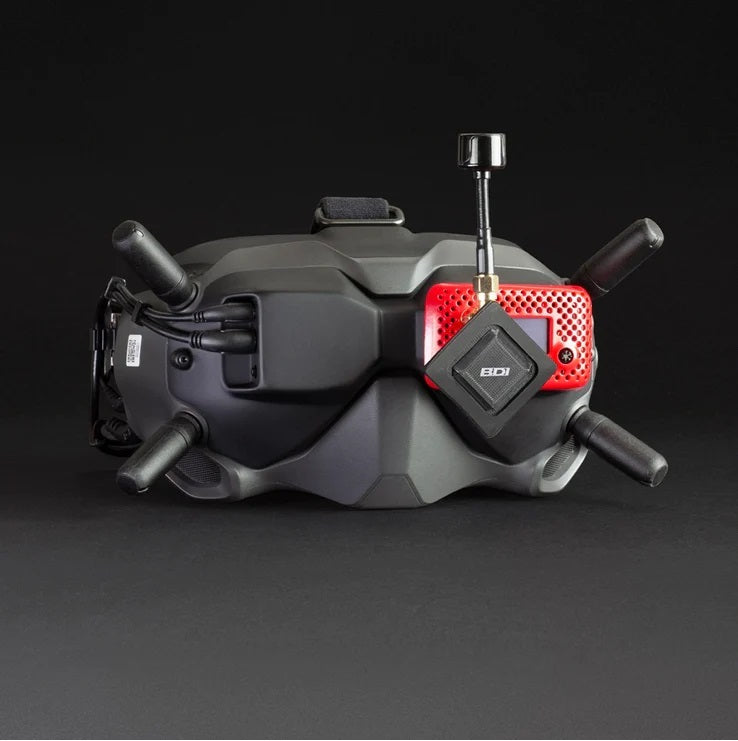

The BDI Analog Conversion Kit For DJI Digital FPV Goggles Is Not The First Of Its Kind But Definitely The Most "Finished" Product Compared To Other Options.
The Kit Includes Everything You Need To Add An Analog FPV Module To Your Goggle Like The Immersiorc Rapidfire Or TBS Fusion.
Changelog V1 > V2:
6s Compatible
On/Off Power Switch
New Packaging And A New Cable Management Kit
Checkout All Our Goggle Modules And The Rest Of Our DJI Compatible Gear!
Features:
Compatible With Existing Modules: The Digidapter Is Compatible With Existing Analog Modules. Featuring A Standard 9 Pin Header For Use With The TBS Fusion, Foxeer Wildfire, Rapid Fire, True D-X, Eachine Pro58, And More..
Plug & Play No Solder Solution: Installation Takes Less Than A Minute, And Mounts Quickly And Easily To The Front Of Your DJI Digital FPV Goggles. Including Optional Solder Points For A Cable Free Solution.
Specifications:
Dimensions: 158 X 74 X 40 Mm (6.25 X 3 X 1.6 Inches)
Weight: 34g
Packaged Weight:110g
Ports
5.5mm X 2.1mm DC In 7.4v-26v (2s-6s)
4 Pole 3.5mm Video/Audio Out
9 Pin RF Module Receiver Header
Button: Short Delay Tactile Power Button For Analog Module
Cables
5.5mm X 2.1mm Male To Dual 5.5mm X 2.1mm Female DC Jack Splitter
4 Pole Gold Plated 3.5mm Male To 3.5mm Male Video Cable
Dual 4 Pole 3.5mm Male To 3 Pole 3.5mm Female Splitter Video/Audio Cable
Accessories: Screwless Strain Relief Clip And Cable Management Clips
Maximum Input Voltage: 28 Volts DC
Minimum Input Voltage: 7.4 Volts DC
Nominal Output Voltage: 5 Volts DC
Maximum Module Supply Current: 1.0 Amp
Rated Continuous Power:5 Watts
Material/Colour: Matte Black, Injection Moulded, Acrylonitrile Butadiene Styrene (ABS)

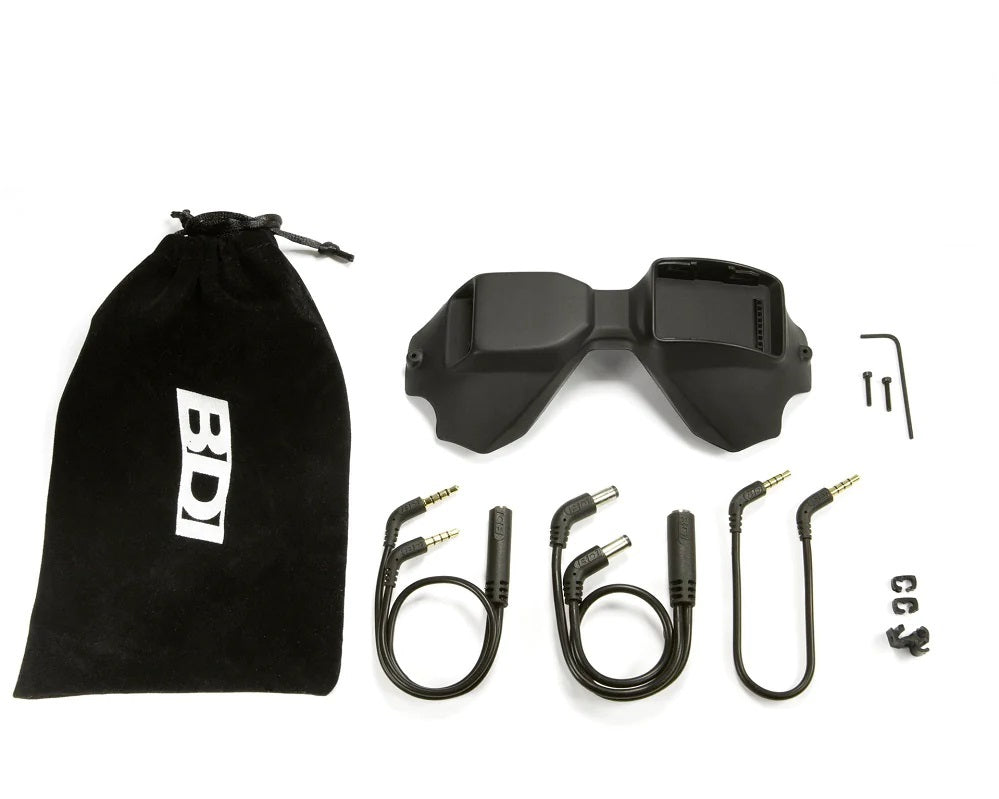

INCLUDES:
1 X Digidapterv2 Faceplate
1 x Analog video cable
1 x Analog video/audio splitter for audio out
1 x Dual DC/DC male to single DC female split cable
1 x Allen key
2 x 12mm cap head bolts
1 x Cable strain relief clip
2 x Cable clips
