Flip32 OMNIBUS F4 Flight Controller

Flip32 OMNIBUS F4 Flight Controller

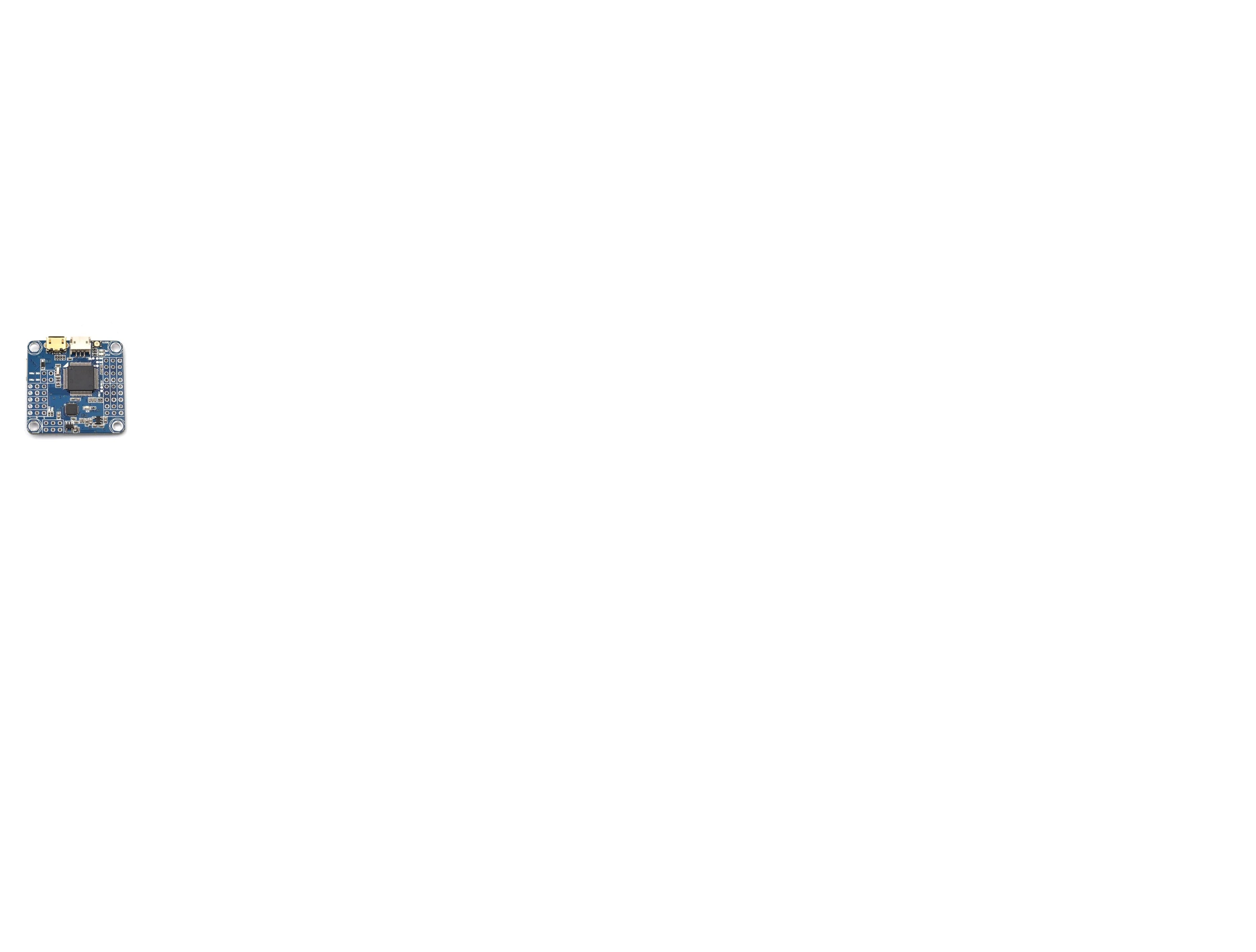

Flip32 OMNIBUS F4 Flight Controller is new generation F4 hardware flight controller for FPV race with STM32F405 MCU.

The Flip32 Omnibus flight controller uses the MPU6000 over SPI for the best possible flight performance. Along with the MPU6000 are a and an AB7456 OSD chip (an upgraded MAX7456) for the beta flight integrated OSD. You won’t need a PDB with this build because there is a high-performance 5v, 1.5a STMicrocontroller L78 voltage regulator, so you can plug the flight battery right into the flight controller. The  Flip32 Omnibus flight controller the first  F4 Flight controller with a MAX7456 OSD chip directly connected to the flight controller, so it can be configured from the beta flight configurator.  A new generation AIO Flight control for FPV. Based on the F403 MCU and uses F4 MCU controls for OSD over SPI bus in DMA mode.

The Flip 32 OmnibusF4 flight controller is an integrated flight controller and OSD specifically designed for ease of use and outstanding flight performance. The MPU6000 inertial motion sensor was chosen for its high reliability, accuracy and update speed. This board has no problem running fast loop times and ESC protocols. There is an onboard for altitude sensing along with an On Screen Display (OSD) chip directly connected to the main processor (MCU). This tight integration between the MCU and the OSD enables fast updates to the display and easy configuration of the OSD, which is managed straight from the beta flight configuration tool. You no longer need to worry about the extra hassle of configuring your OSD with a USB/UART adapter and 3rd party configuration tool, it’s all built into the flight control software.

The Flip 32 OmnibusF4 was designed to work specifically with BorisB’s amazing BetaFlight firmware. Boris is a control system expert and has implemented his own “ISA-PID compensator” based PID controller, called the beta flight PIDc, that gives an almost-predictive control for that super locked-in stick feeling. Download the beta flight configurator to flash and configure your quadcopter here: https://chrome.google.com/webstore/detail/betaflight-configurator/kdaghagfopacdngbohiknlhcocjccjao

Finally, for maximum ease of use, the Flip 32  OmnibusF4 has an onboard voltage regulator that can easily handle up to a 5s battery. No need to mess with a PDB, just plug your battery straight into the flight controller and you’re ready to go! Along with the robustly engineered power management system on the OmnibusF4, special precautions have been taken to ensure that the sensitive OSD chip is well protected, so you don’t have to worry about any problems with your OSD. even on 5s!

Features:

1. Buzzer Port and LED strip Port
2. 128Mb Flash(16M Byte)
3. SBUS/PPM input (Pinheaders)
4. DSM/DSM2/DSMX input(Plug)
5. 6PWM output (Pinheaders)
6. Only 36x36mm, mount holes 30.5×30.5mm
7. All through hole pin header Design  -no Sh connectors
8. STM32 F405 MCU, Runs Raceflight CC3D REVO firmware
9. Works Perfect with Raceflight or BetaFlight 3.0
10. direct Lipo input: 1.5A  Built-in onboard regulator – NO BEC needed.
11. Connect directly to a Lipo to power the board and Rx
12. RaceFlight or Beta flight support on an STM32 F3 with an SPI based MPU6000
13. gyro – low noise gyro will not force one to soft-mount the fc
14. Dshot support (Need to update the firmware to Beta flight 3.1 target AirbotF4)

Useful Links:

Betaflight – Configurator

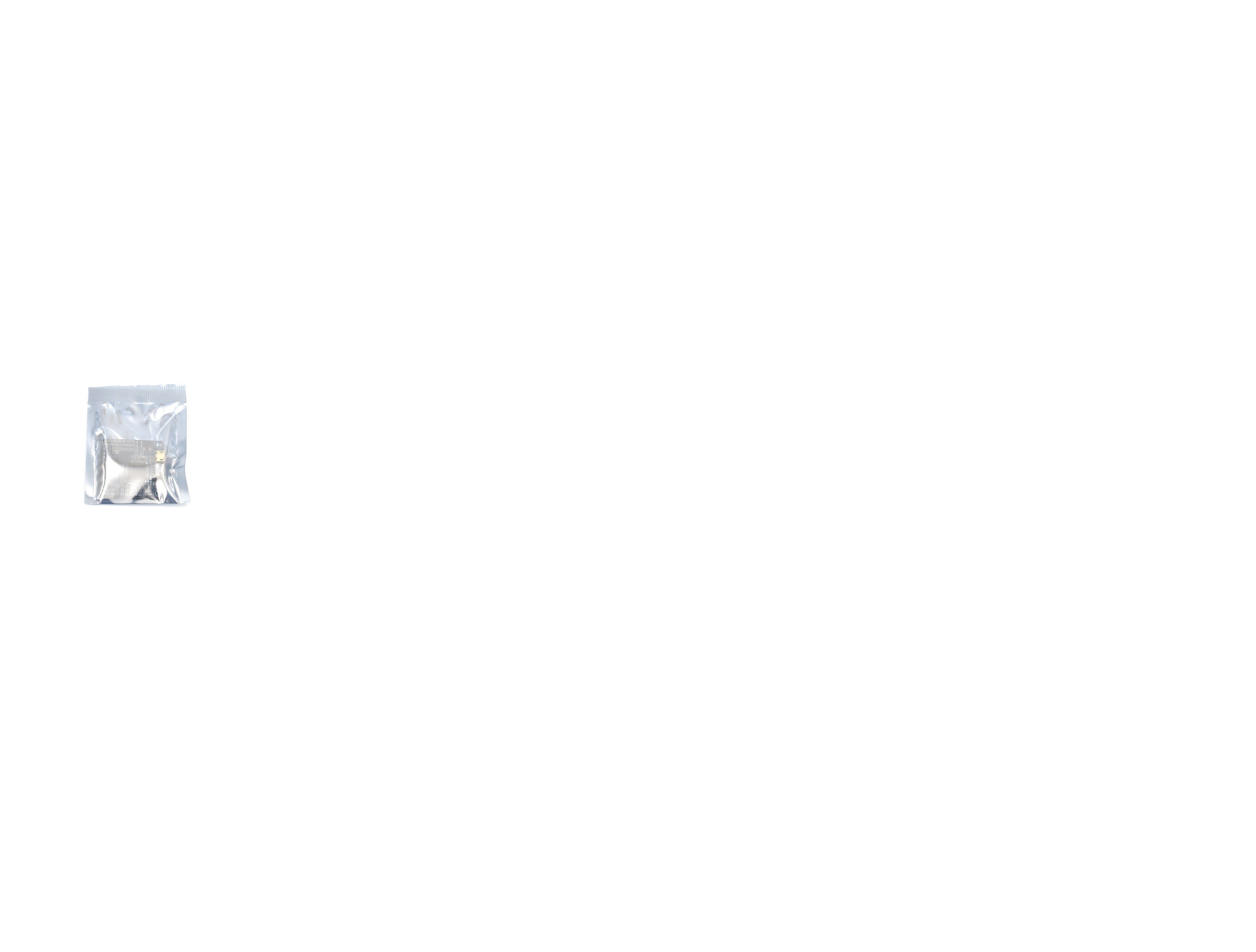

Package Includes:

1 x Flip32 OMNIBUS F4 Flight Controller

1 x Connecting Cable

1 x 3*10 Header Pins (Straight)

1 x 2*5 Header Pins (Straight)
