FUTABA BR3000 BATTERY CHECKER LIPO LIFE NICD NIMH NI-ION

Out of Stock
Rs. 5,292.30

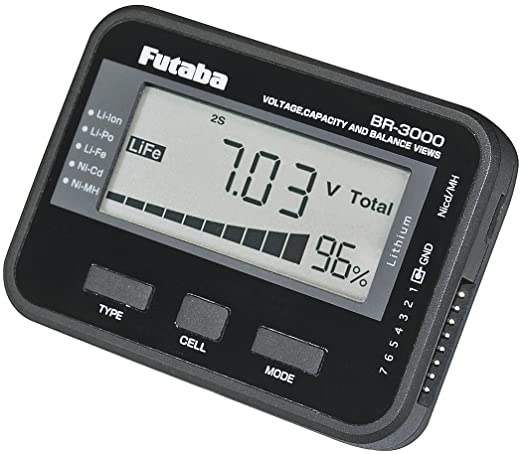

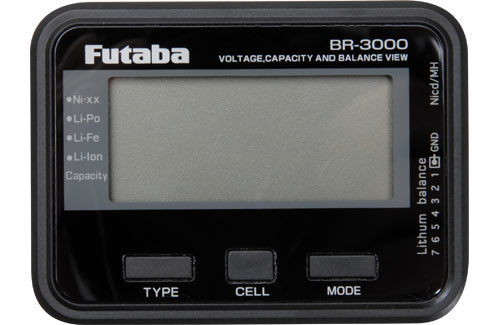

BR-3000 Battery/Balance Checker (LiFe + LiPo + NiCd + NiMh)



The new Futaba BR-3000 Battery Checker is a sophisticated unit that can be used to check a wide range of battery packs of varying voltages, with Li-Po, Li-Fe and Li-Ion packs of 2-7 cells, and Ni-MH and Ni-Cd packs of 4-7 cells all being suitable for checking with the BR-3000. Important information such as total pack voltage and remaining capacity are available for all packs, whilst those using Lithium technology can also be checked for individual cell voltage, minimum and maximum cell voltage and cell voltage differences, as well as being able to take advantage of the included balance function.

FUNCTIONS PER APPLICABLE BATTERY PACK:

LiFe (Lithium Ferrite), LiPo (Lithium Polymer), and LiIon (Lithium Ion): 2 ~ 7 Cells – Total Voltage, Remaining Capacity (Bar graph, % display), Cell Voltage (Each cell), Minimum Cell Voltage, Maximum Cell Voltage, Cell Voltage Difference (Maximum-Minimum)NiCd (Nickel Cadmium) and NiMH (Nickel Metal Hydride): 4 ~ 7 Cells – Total Voltage, Remaining Capacity (Bar graph, % display)

VOLTAGE DISPLAY ERROR: ±1.5%

DISPLAY RANGE – TOTAL VOLTAGE:

Li – 5 V ~ 34 V

Ni – 4.0 V ~ 17 V

DISPLAY RANGE – CELL VOLTAGE: Li – 1.1 V ~ 4.9 V

CASE SIZE (EXCLUDING PROTRUDING PARTS): 85 mm x 63 mm x 15 mm

WEIGHT: 52.6 g

OPERATING TEMPERATURE: -10 ~ 45° C

STORAGE TEMPERATURE: -20 ~ 60° C
