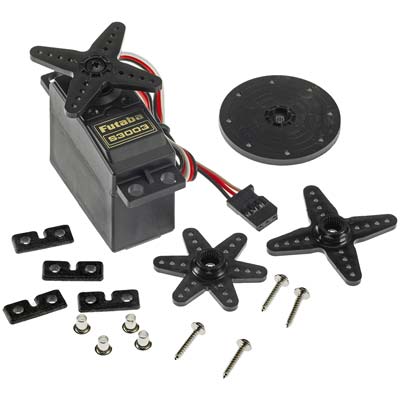

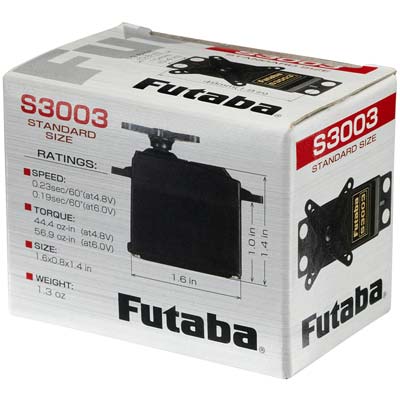

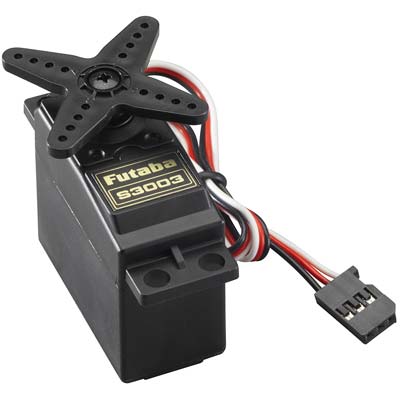

FUTABA SERVO S3003 STANDARD

Rs. 1,416.00

Dimensions

1.6" x 0.8"x 1.4" (41 x 20 x 36mm)

Product Weight

1.3oz. (37.2g)

Output Shaft Style

25 Tooth (3F) Spline

Voltage Range

4.8V - 6.0V

No-Load Speed (4.8V)

0.23sec/60°

No-Load Speed (6.0V)

0.19sec/60°

Stall Torque (4.8V)

44 oz/in. (3.2kg.cm)

Stall Torque (6.0V)

56.8 oz/in. (4.1kg.cm)

Pulse Amplitude

3-5V

Operating Temperature

-20 to +60°C

Continuous Rotation Modifiable

Yes

Direction w/ Increasing PWM Signal

Counter Clockwise

Motor Type

3 Pole Ferrite

Potentiometer Drive

Indirect Drive

Output Shaft Support

Plastic Bearing

Gear Type

Straight Cut Spear

Gear Material

Nylon

Wire Length

12"
