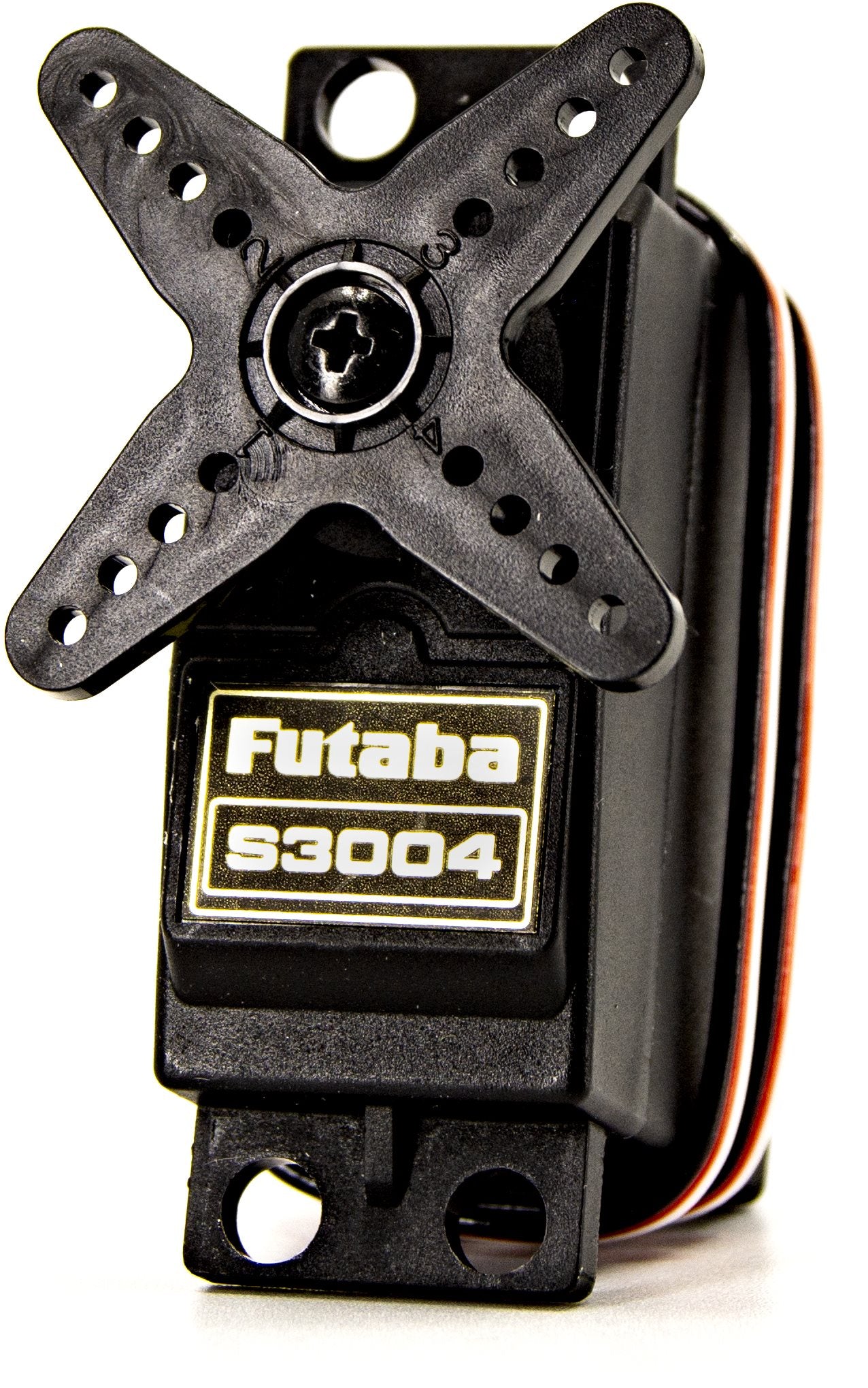

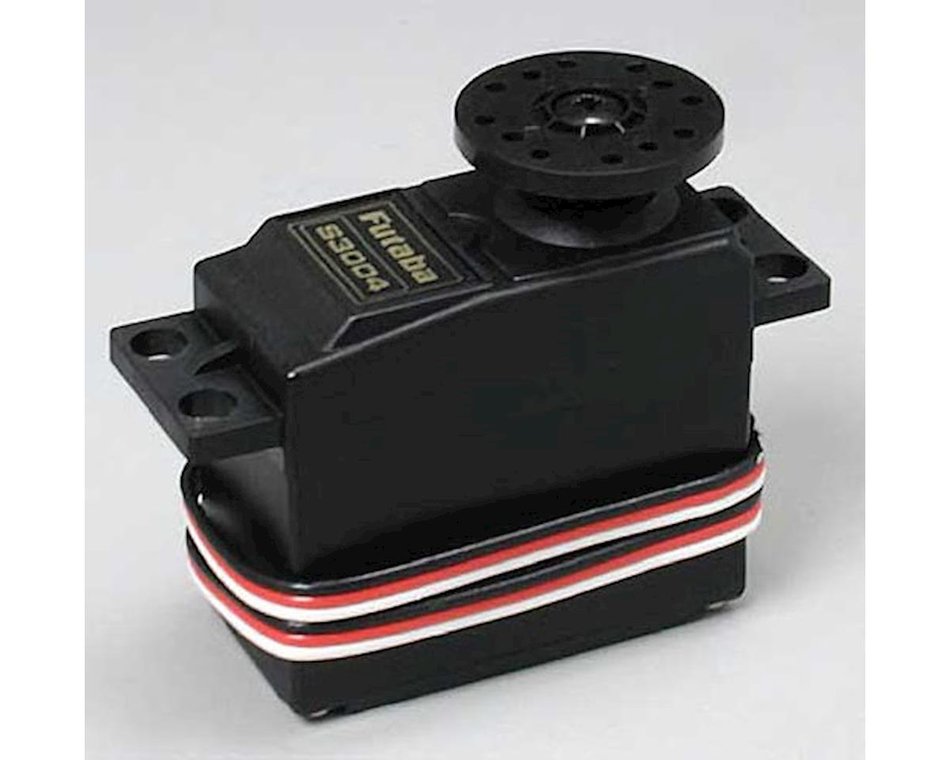

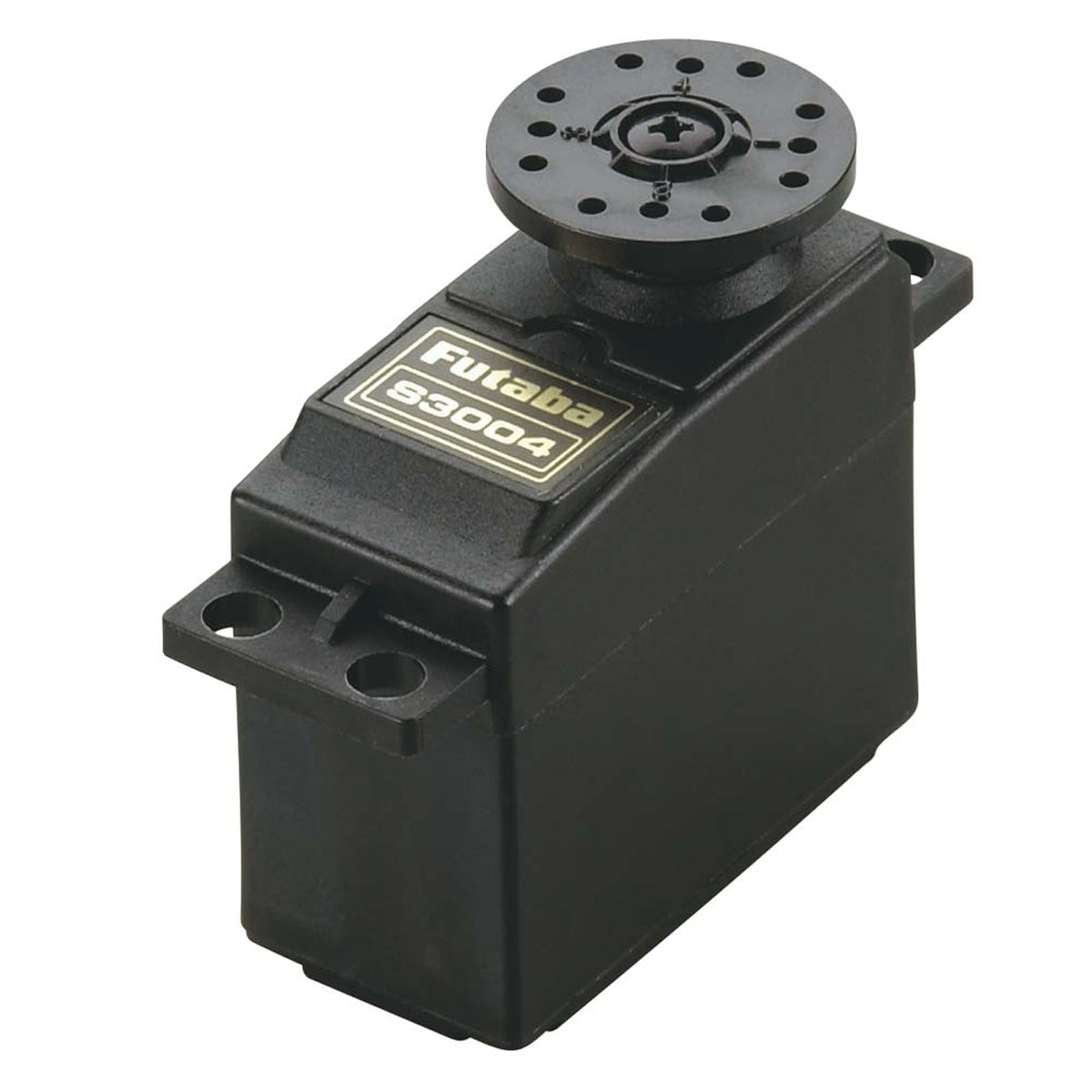

FUTABA SERVO S3004

Rs. 1,752.30

S3004– Standard Analog Surface Servo

Key Features
  • Single ball bearing on output shaft
  • Precise tight fit throughout the geartrain
  • Being standard size and lightweight, it fits many applications.
  • Three pole motor
  • Nylon gears
  • Speed: 0.23 sec/60° @ 4.8V 0.19 sec/60° @ 6.0V
  • Torque: 44 oz-in (3.2 kg-cm) at 4.8V 57 oz-in (4.1 kg-cm) at 6.0V
  • Dimensions: 1.6 x 0.8 x 1.4" (1-9/16 x 13/16 x 1-7/16") (40 x 20 x 36mm)
  • Weight: 1.3 ounce (1-5/16oz) (37 grams)
  • Connector: "J" type with approx. 5" wire



Specifications

Modulation:

Analog

Torque:

4.8V: 44.00 oz-in (3.17 kg-cm)
6.0V: 57.00 oz-in (4.10 kg-cm)

Speed:

4.8V: 0.23 sec/60°
6.0V: 0.19 sec/60°

Weight:

1.31 oz (37.0 g)

Dimensions:

Length:1.57 in (39.9 mm)
Width:0.79 in (20.1 mm)
Height:1.42 in (36.1 mm)

Motor Type:

3-pole

Gear Type:

Plastic

Rotation/Support:

Dual Bearings

Rotational Range:

180°
