SKYRC PC1080 Dual Channel LiPo Battery Charger

Description:

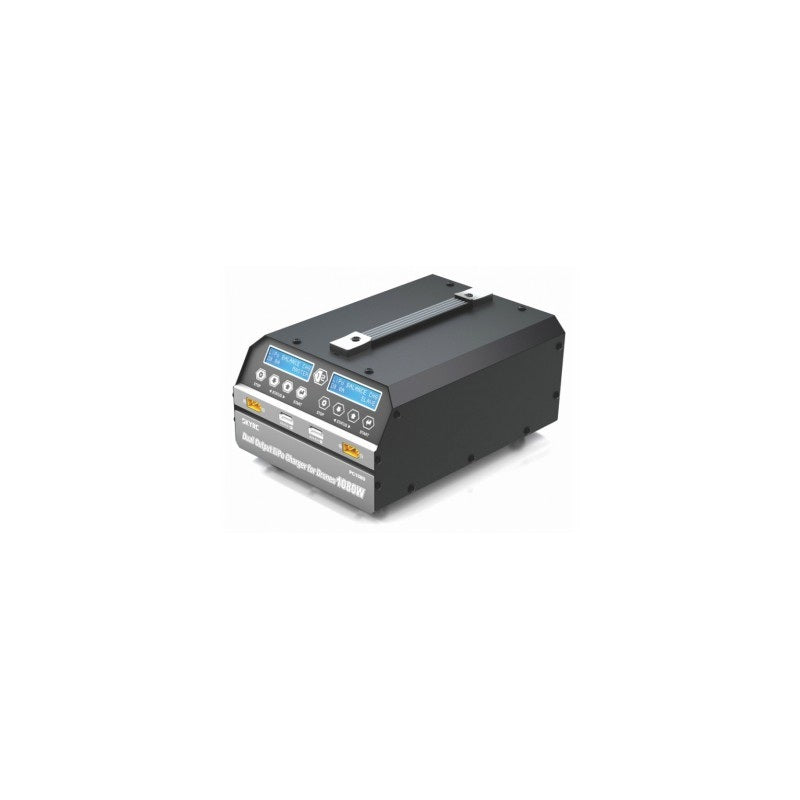

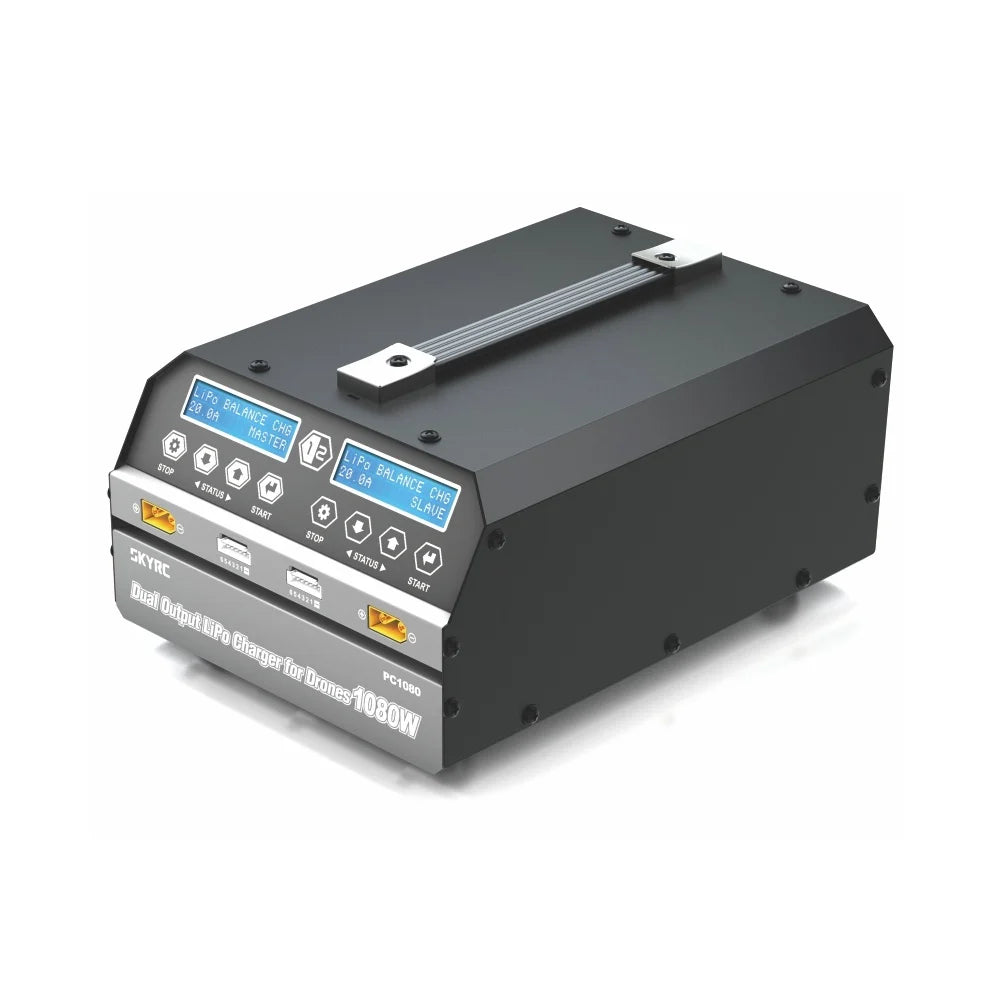

SKYRC PC1080 Dual Channel LiPo Battery Charger

This  is a dual-channel 6S LiPo charger for industrial application drones. It is reliable, safe and easy to operate while with comprehensive functionality, like battery voltage meter, internal resistance meter, LiHV charging mode, also the time-saving synchronization mode.

This charger is capable of balance charging 2 packs of 6 cell batteries simultaneously. It is specifically designed for the big battery pack.  The charger is equipped with master-slave control mode, which allows you to synchronize more than one charger when charging the same batteries. It uses advanced 32bits high-speed CPU from STMicroelectronics which improves its processing capability by 20 times.

Key characteristic SkyRC PC1080 Charger:

1. High-Frequency Capacitor: Using high spec large capacitor ensures the charger can work properly for a longer period of time.
2. Active PFC: Active PFC uses circuitry to correct the amount of power drawn to obtain the best ratio of power factor, achieving high efficiency, 93%. Which makes the product more stable and reduces the interference to the power grid.
3. Switched-mode Power Supply: Accepts power from mains supplies throughout the world.
4. Conformal Coating: Conformal coating helps electronics withstanding harsh environments, and protects them against moisture, dust, chemicals, corrosive attack and temperature extremes etc. It also ensures PC1080 has stable performance in the field.
5. Automatically Charging 12 Packs of Batteries in Sequence: PC1080 pairing with G630 charging hubs, an automatic charging management system, can charge 12 packs of LiPo batteries in sequence, according to its remaining capacity (percentage), the one with the highest capacity will be charged first.

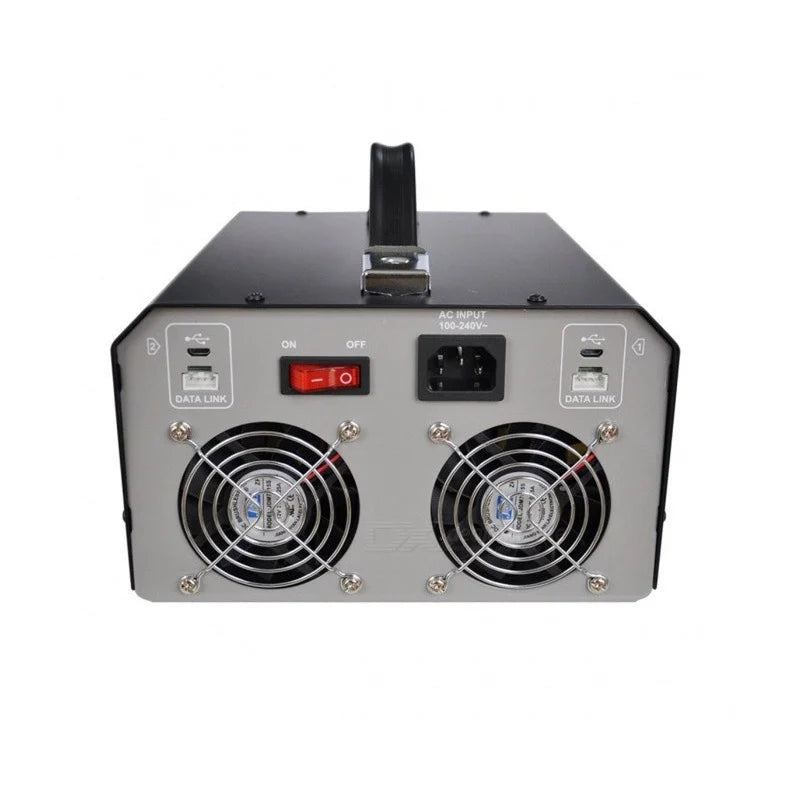

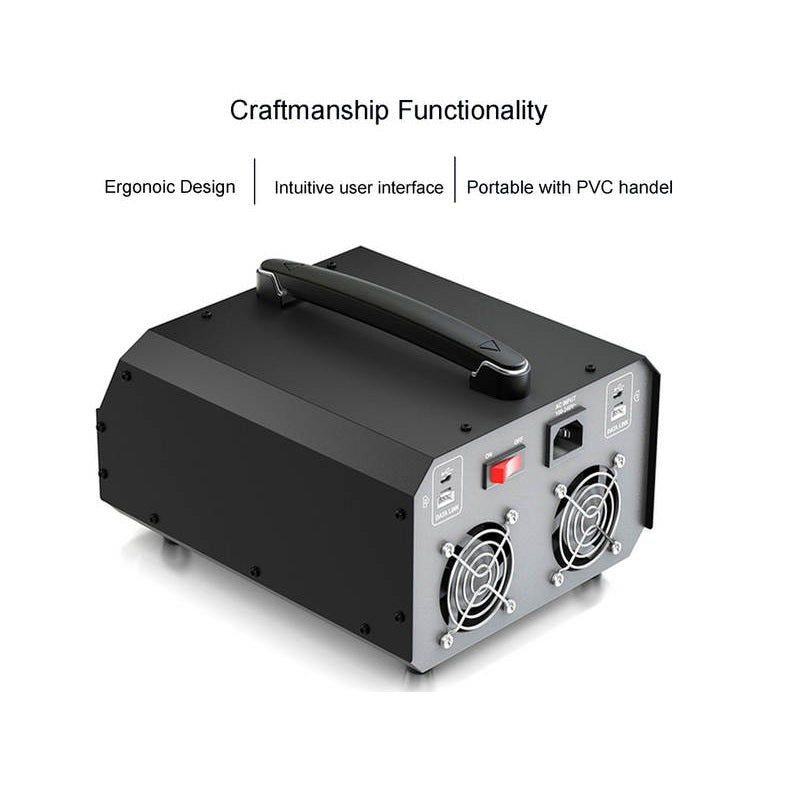

6. Dual Ball Bearing High-Speed Cooling Fans: Dual ball bearing high-speed cooling fans with wing type blades design, provides good ventilation and a cool working condition.
7. High-Density Fin-type Aluminum Heatsink: Fin-type design, large surface, greatly improved heat dissipation, ensures long-time stable working performance.
8. Maximized Safety Protection: It has short circuit protection, reverse polarity protection and over-temperature protection. And it complies with required regulations of CE, RoHS, FCC, proving to be safe and reliable for the designed usage.
9. Battery Internal Resistance Meter: With this function, the internal resistance of each cell will be displayed on the screen. Internal resistance is a key feature which reflects the health status of the battery, the lower internal resistance indicates the higher battery quality. Also, this value can help you pair your batteries.

Features:

1. ONE-KEY to start charging(20A Current in default)
2. Unique synchronization function, one can control multiple chargers.
3. With battery voltage detection, battery internal resistance detection, real-time understanding of battery working status.
4. Short circuit maintenance, reverse protection, over-temperature protection and other maintenance functions.
5. Built-in anti-fire protection circuit to avoid sparking when connecting battery.
