Tamiya 57798 1/10 RTR XB Abarth 500 Assetto Corse (M-05)

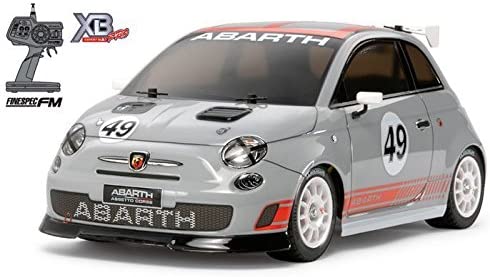

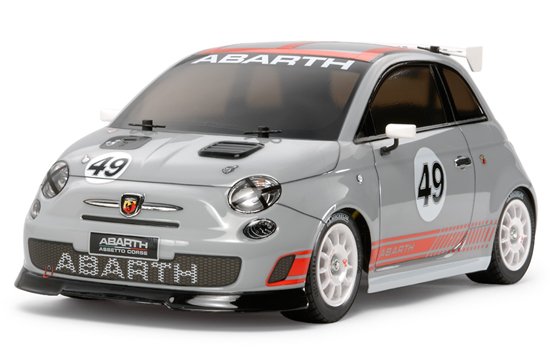

his is a 1/10 scale ready to run R/C model of the Abarth 500 Assetto Corse, a special version of the Abarth 500, which was designed for a one-make race series unveiled in May 2008. The compact but dynamic form of the car has been realistically reproduced with durable polycarbonate, and separately molded side mirrors and rear spoiler provide sharp details. Also included is a sticker sheet which enables to you to reproduce the distinctive red stripe livery, car number, and logos.
R/C Units, Battery Pack, and Charger
R/C units are installed onto the pre-assembled chassis, and a wheel-trigger type transmitter, battery pack & charger are included to allow you to enjoy R/C driving instantly. The FM transmitter features detachable grip covers to match your hand size, as well as the throttle trigger covers to increase the size of the throttle trigger for easier trigger movement. (Battery pack and charger are included for Japan only.)
Low Center of Gravity M-05 Chassis
The front wheel drive M-05 chassis features a lightweight, narrow, durable, and an easy-assembly semi-monocoque resin frame. Gearbox, motor, battery pack, receiver, servo and ESC are positioned for optimum weight distribution and a low center of gravity. Ground-hugging 4-wheel independent double wishbone suspension and the 3-piece steering linkage provides stable high-speed cornering. In addition, 60D radial tires with tread pattern are mounted on 11-spoke wheels.
Specifications
- Length: 365mm, Width: 170mm, Height: 142mm
- Wheelbase: 225mm
- Tread (Front and Rear): 138mm
- Front mounted motor front wheel drive
- 3-Bevel Differential Gear
- 3-Piece Steering Linkage
- Front and Rear Double Wishbone Suspension
- Front and Rear Friction Dampers
- Gear Ratio= 5.8:1
- Tire Width/Diameter (Front and Rear): 25/59mm
- Forward/Reverse type Electronic Speed Controller (ESC) included.
- *Requires 8xR6/AA/UM3 Batteries for Transmitter.
Separately Required Items
- Batteries for transmitter
- Battery Pack & Charger
